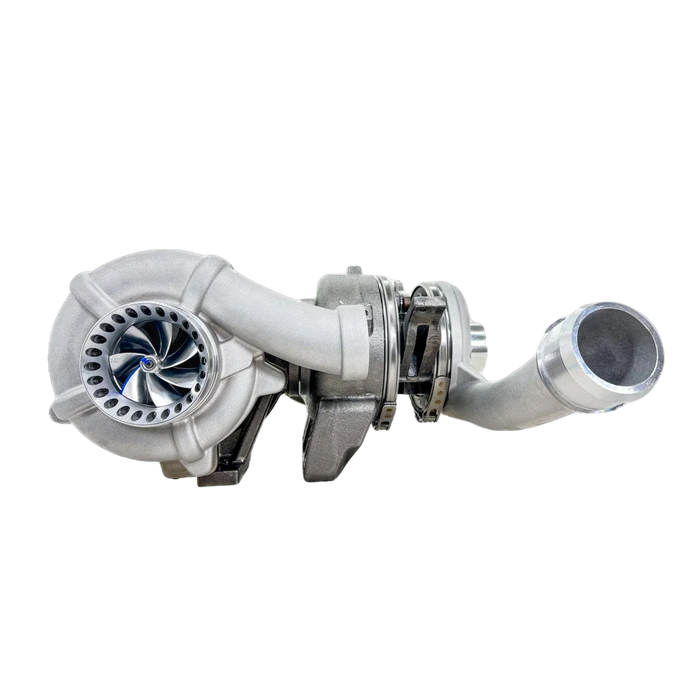

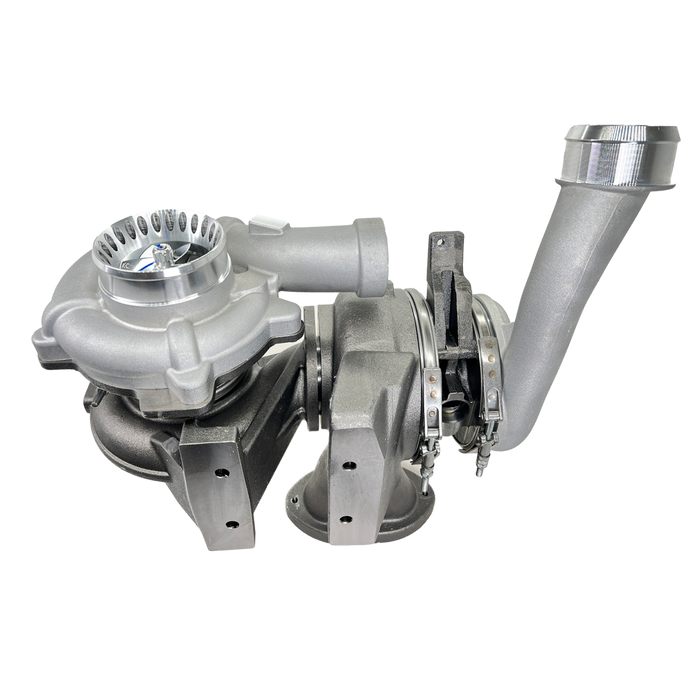

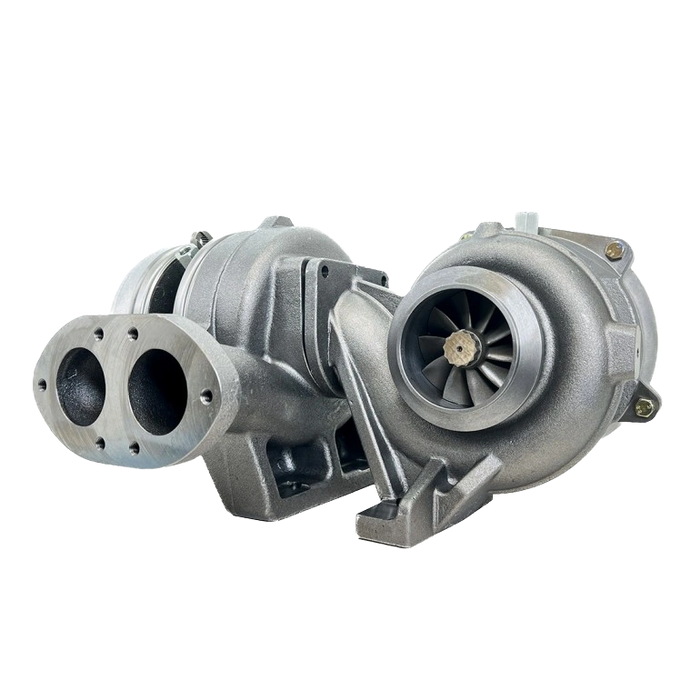

Unlock serious power from your 2008-2010 Ford 6.4L Powerstroke with the KC Fusion Compound Turbo set from KC Turbos, available through Warren Diesel. This set pairs KC's Stage 1 High Pressure turbo with your choice of KC's Stage 1 or Stage 2 Low Pressure turbo: the HP side spools fast and feeds the LP side for big boost and horsepower while keeping light-towing manners.

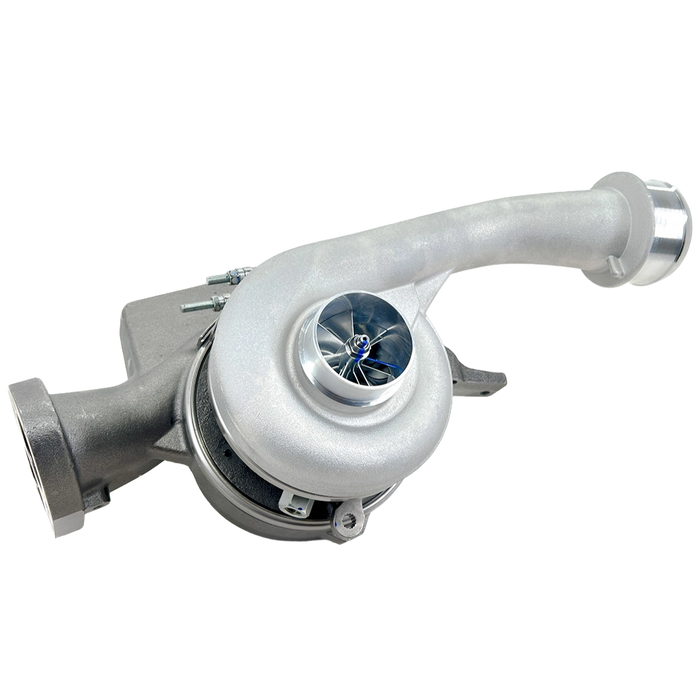

Stage 1 High Pressure
- Drop-in ready
- Upgraded billet compressor wheel and ported compressor cover
- High-flow turbine wheel
- Upgraded 360 journal bearing design
- Hardware & install kit included
- Up to $400 refundable core charge (per KC Turbos)

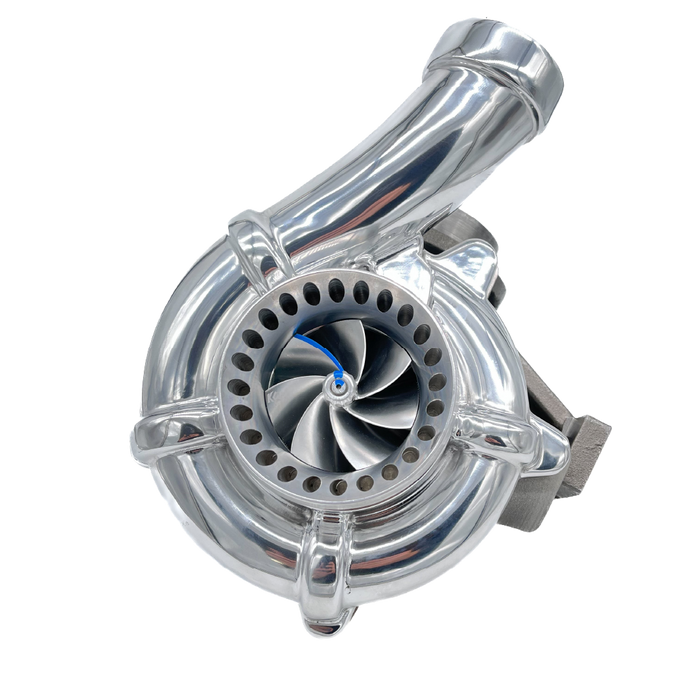

Stage 1 Low Pressure
- 71mm billet compressor wheel, stock-size turbine wheel
- Great for stock-size injectors
- Larger 4" inlet with ported anti-surge cover
- Upgraded 360 thrust bearing
- No core required
Stage 2 Low Pressure
- 75mm billet compressor wheel, 80mm S400 turbine wheel
- Larger 4" inlet with ported anti-surge cover
- Upgraded 360 thrust bearing
- No core required
Recommended injectors: 30%-100% with twin pumps; 850-1000hp capable larger injectors.

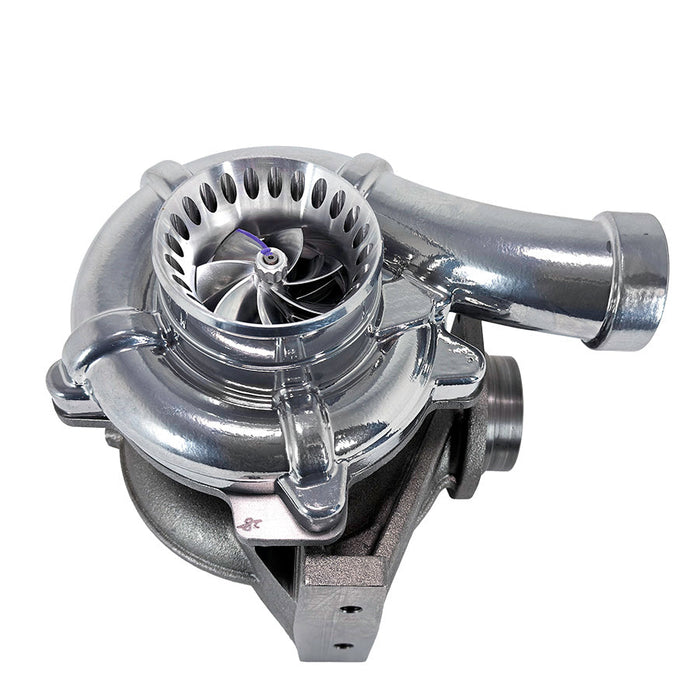

Requires an upgraded 4" intake/air filter to fit the 4" turbo inlet. Actuator not included. Optional custom cover finishes available.
Manufactured by KC Turbos and sold by Warren Diesel. Questions on fitment or building your 6.4 setup? Call Warren Diesel at 866-276-2511.
